Cat.8 STP Field Termination Tool Free Plug

CC-01-90001

CRXCONEC new cat 8 RJ45 toolless plug solution bring you a new prospect of high transmission speed of 40G. Cat.8 is characterized to 2 GHz and specified for 30 meters, 2-connector channels which is intended as a data center application. CRXCONEC’ cat. 8 solution is tested based on ANSI/TIA-568.2-D, approved in June 2018 for Category 8 Channels and also are independently certified by reputed laboratories GHMT in Germany. Our cat.8 field termination plug with optional design, one is straight one and the other one is short body with 5 angled direction which can help the deployment of IoT and sensor technology, such as IP cameras, automatic building control system, and Wi-Fi access points.

Cat.8 STP tool less Plug

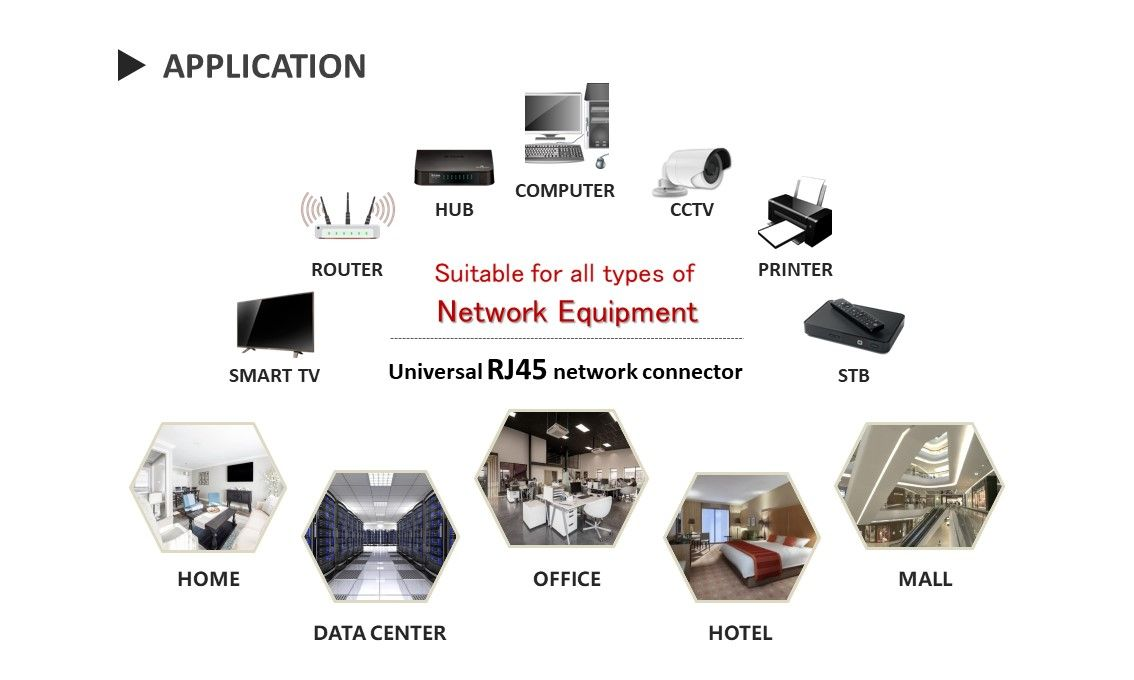

Applications

Crxconec CAT.8 Shielded tool free RJ45 connector could apply with different outlet such as keystone Jack and patch panel, faceplate and surface mount box, support 2000MHZ(2GHZ )frequency. Mainly used in the Data center or indoor working area, also suitable for HDbaseT application to carry the power & video and support long distance!

Cat.8 shielded ftp toolless plug

Material

1. Extractor: PC, UL 94V-2, options color.
2. Housing: Zinc die-Casting with nickel plated.
3. RJ45 plug:
3-1 Housing: PC, UL 94V-2, black color.
3-2 Contact Material: Phosphor bronze with 100 micro-inch nickel plated.
3-3 Contact Finish: Min. 50 micro-inch gold plated on surface contact area.
4. Cover: Zinc die-casting with nickel plated.
5. Wire Management Bar: PC+glass fiber, white color, UL94-V2.
6. IDC:
6-1 Housing: PC, white color, UL94-V2
6-2 Terminal: Titanium copper with tin plated.
7. Grounding Contact: Zinc die-casting with nickel plated.
8. Boot:
8-1 Housing: Zinc die-casting with nickel plated.
8-2 SR: PC, UL 94V-2, Black color.
8-3 CAP: PC, UL 94V-2, Black color.
9. PCB, UL 94-V0.
10. Copper foil tape.

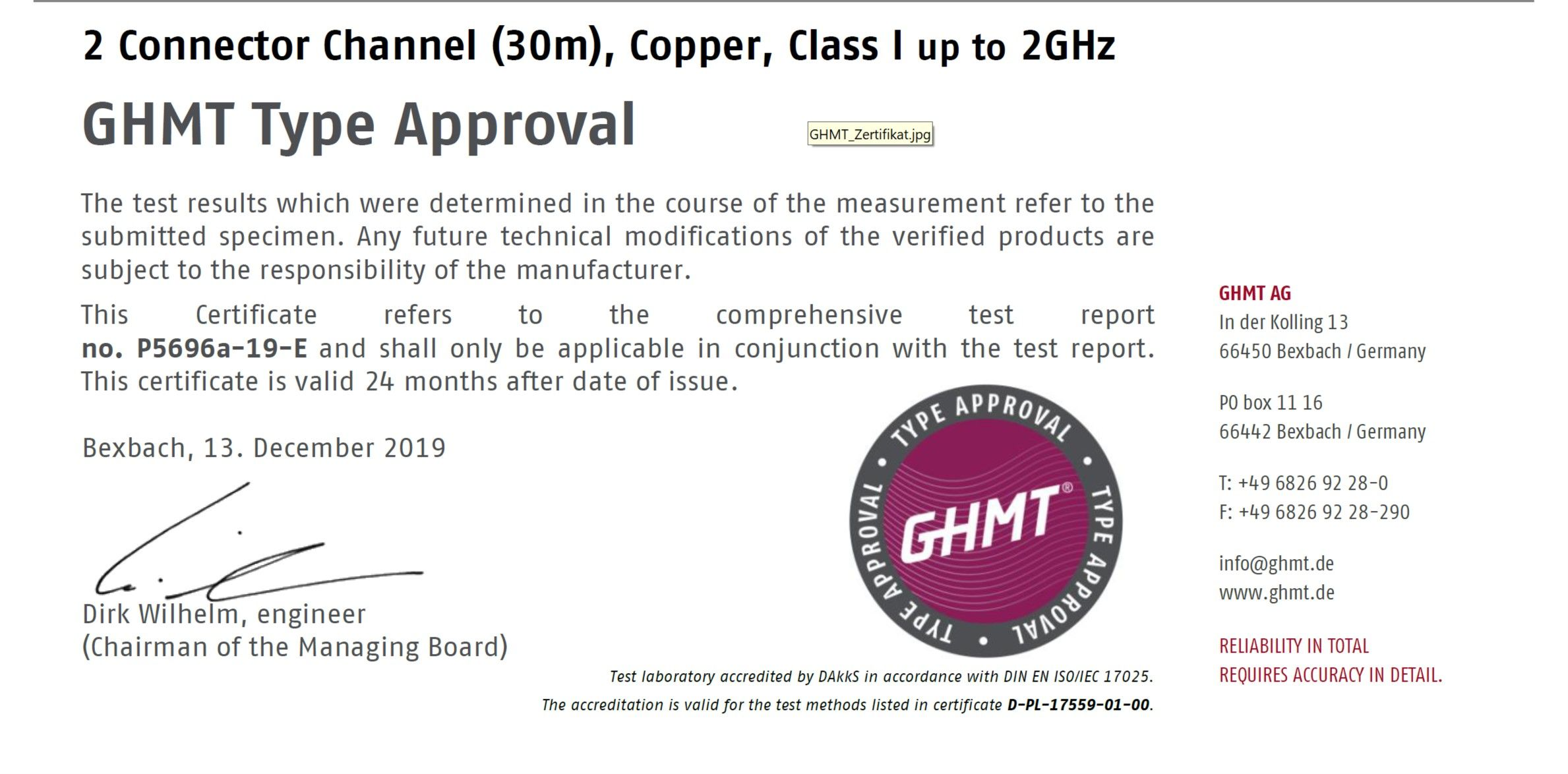

GHMT Verified Cat.8 Copper System Certification

CRXCONEC Cat.8 channel link are independently certified by reputed laboratories GHMT in Germany, based on 2 Connector channel under 30M and follow the standard of Class I ISO/IEC TR 11801-9901 Ed.1.0 (2014-08).

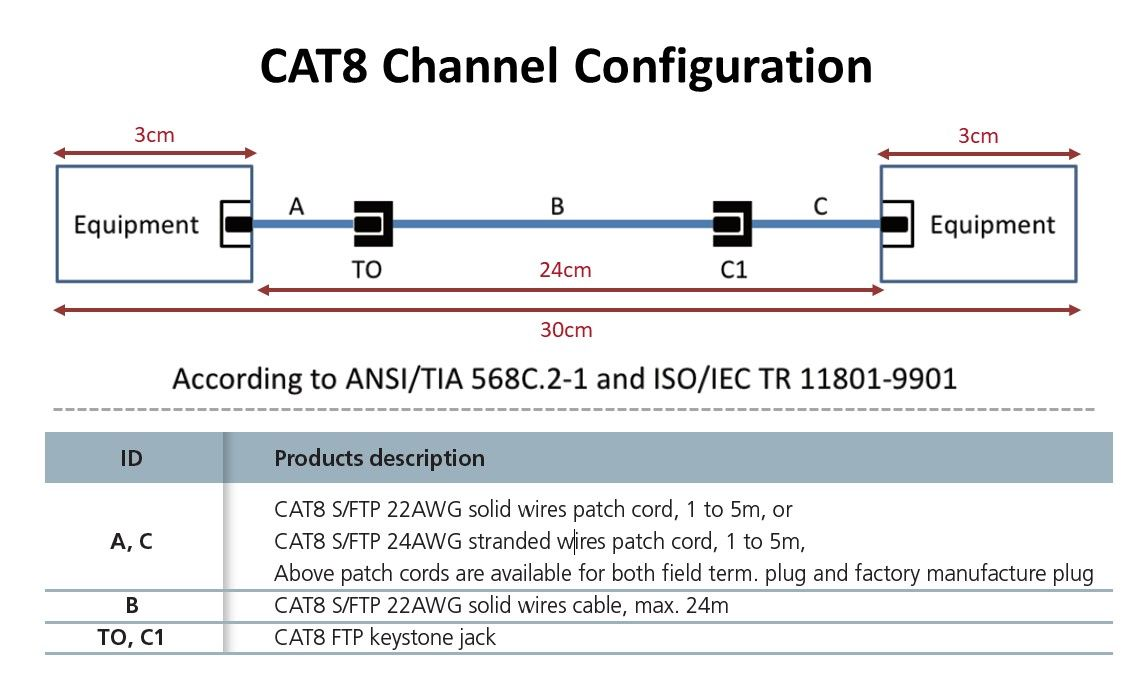

Cat.8 Channel Configuration

Here below is CRXCONEC Cat.8 channel link demonstration, it is a channel link under 30M with high speed application.

OEM Availability

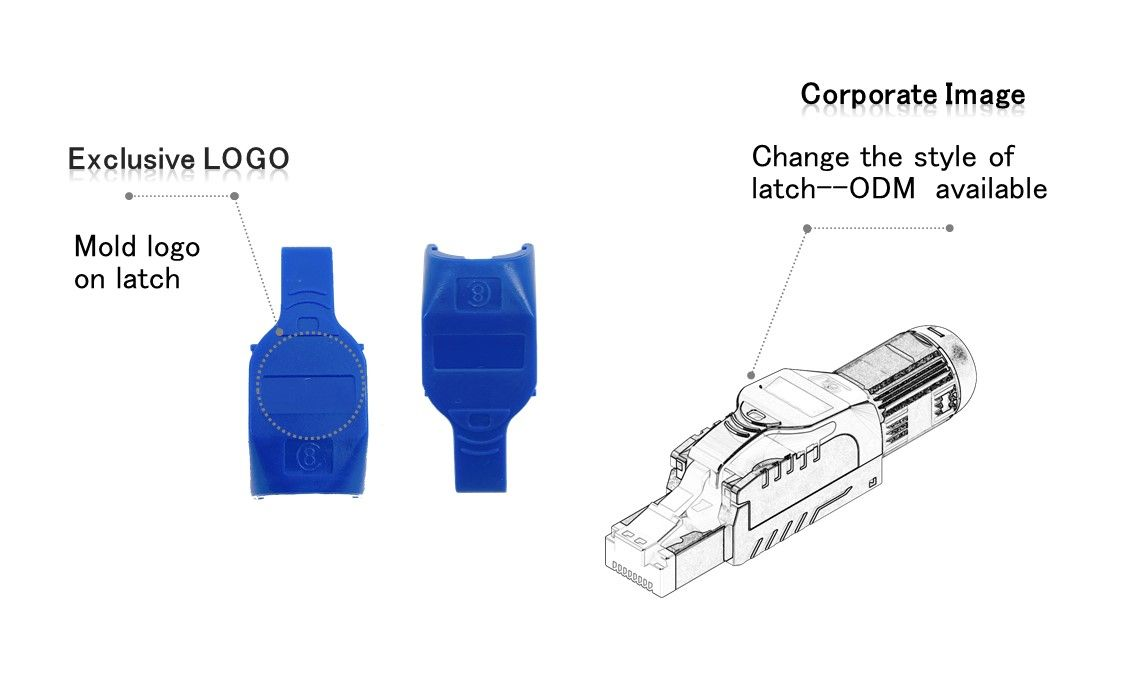

CRCONEC can provide OEM option to build your own toolles plug, the OEM options included to make your own latch design, and also you can put your logo on it.

Structured Cabling Category 8 Shielded Termination Plug Assembly

Cat.8 FTP Toolless Plug Packaging

CRXCONEC Cat.8 Toolless Plug put 50 pieces to a small box, and 10 small boxes gather to 1 carton.

Purchase Information

Price Term: FOB Taiwan or FOB Ningbo
Payment Term: T/T, credit card, or pay pal
Lead Time: 4 weeks after order confirmation
