Cat.7/ Cat.6A Indutrial RJ45 plug is available in STP version, special design for easy, fast and reliable installation with a screw-fit boot, IP20 anti-dust plug cover is provided as well.Our Cat.7/ Cat.6A Field termination RJ45 Connector provides network cabling solutions for data center and also applied the connection to WAP, IP Cameras and various IP devices. It is designed to terminate with Cat6a or Category 7 larger diameter ethernet cables and suitable with the cable outer diameter from 6.0 to 7.5mm. It can support 10G Ethernet and meet for the PoE plus (IEEE 802.3at) application.
The dual level termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate. Integrated anti-disconnect slide lock prevents accidental disconnections.
Features
Black color Cat.6A Toolless Field Termination plug is designed to terminate with Cat6a or Cat7 larger diameter (23AWG to 26AWG).
Fast and dependable installation.
Long latch design is very easy to plug in and out for high density application.
The screw-fit boot can be fitted with cable outer diameter from 6.0 to 8.5mm which can apply for 22AWG to 26AWG cable.
A dust cover will be included as a part of this plug, it provides the protection under IP20 level.

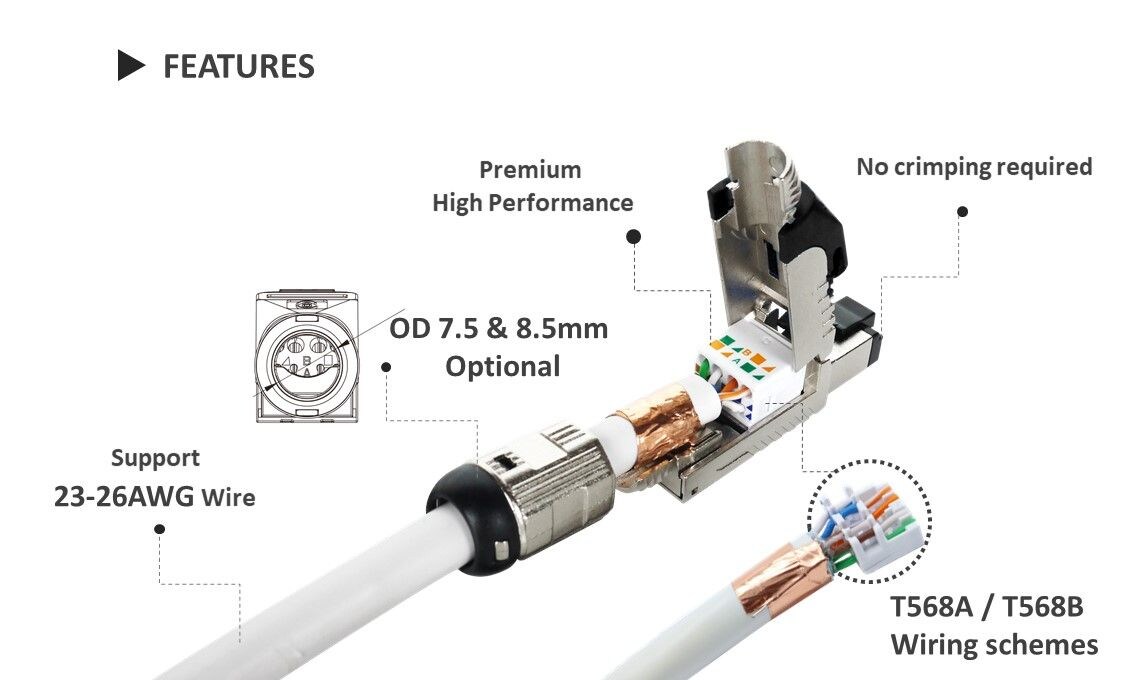

Cat.6A FTP toolless plug color black
Applications
Crxconec CAT.6a Shielded toolless RJ45 plug could apply with different outlet such as keystone Jack and patch panel, faceplate and surface mount box, RJ45 Cat6A STP plug is applicable with 23-26 AWG wire guage cable performed 500MHZ frequency, because of the highly specification, it can be used in the Data center or any indoor working areas.
Cat.6A shielded ftp toolless plug

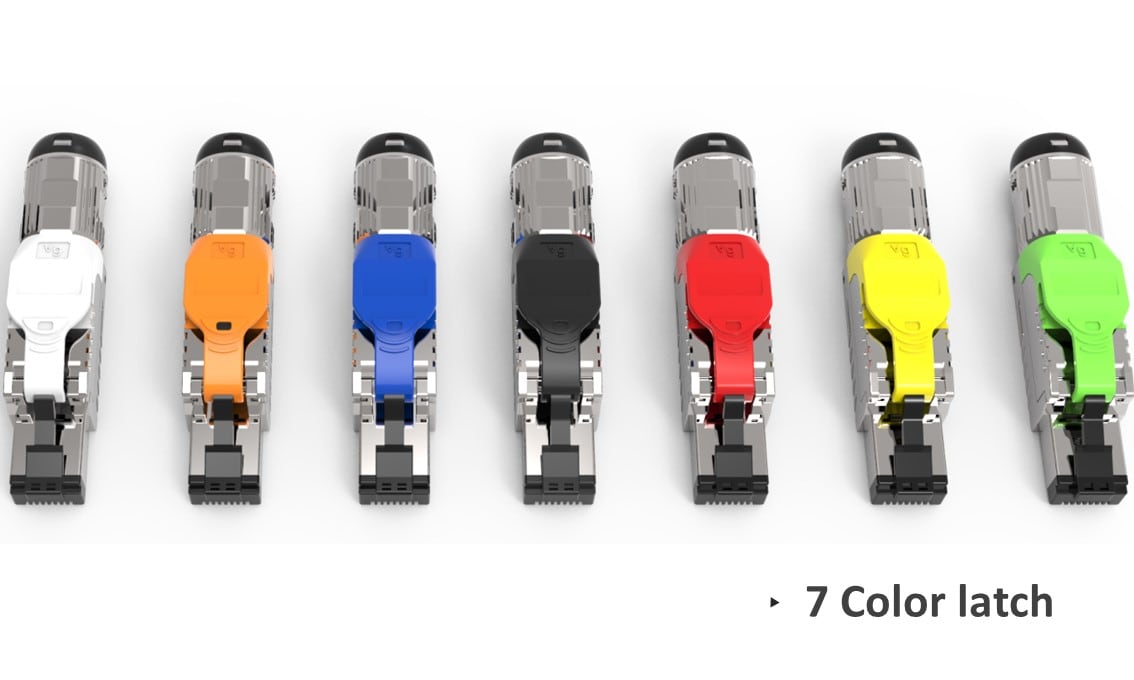

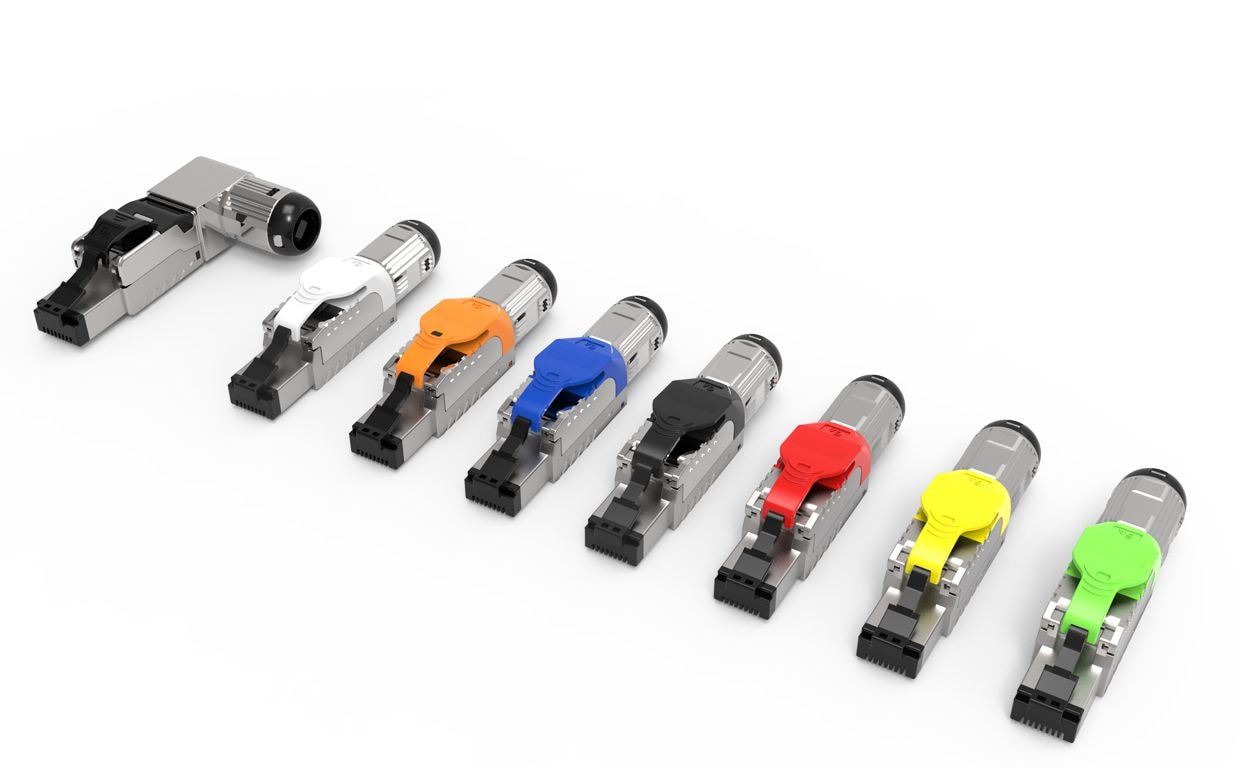

CRXCONEC Cat.6A Toolless RJ45 Plug Provides 7 Types Of Latch Color
Material
1. Extractor: PC, UL 94V-2, Options Color 2. Housing: Zinc die-Casting with nickel plated 3. RJ45 Plug: 3-1 Housing: PC, UL 94V-2, Black Color 3-2 Contact Finish: 50 micro-inch gold plated on surface contact area 4. Cover: Zinc die-casting with nickel plated 5. Wire Management Bar: PC+glass fiber, white color, UL94-V2 6. IDC: 6-1 Housing: PC, white color, UL94-V2 6-2 Terminal: Titanium copper with tin plated 7. Grounding Contact: Zinc die-casting with nickel plated 8. Boot: 8-1 Housing: Zinc die-casting with nickel plated 8-2 SR: PC, UL 94V-2, Black Color 9. PCB, UL 94-V0
Color Your Life
CRXCONEC RJ45 Toolless Plug has 7 types of color, if the color didn't satisfy you, There are 7 colors of our Cat6a field termination plug, if the colors are not satisfied with you, we can make your own specific color for you.

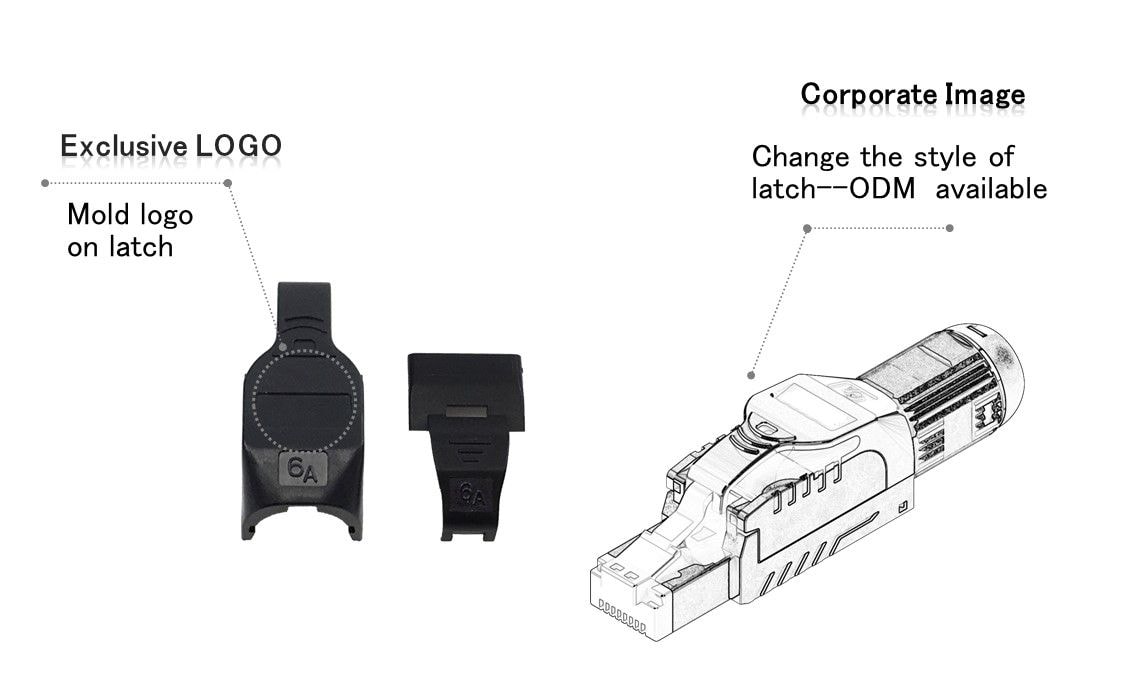

RJ 45 Field Termination Plug Cat6a OEM Availability
CRCONEC can provide OEM option to build your own toolles plug, the OEM options included to make your own latch design, and also you can put your logo on it.
How To Assembly C6A Shielded STP RJ45 Toolless Plug Terminate with Easy Crimping Tool
Cat.6A FTP Toolless Plug Packaging
CRXCONEC Cat.6A Toolless Plug gathers 50 pieces into 1 inner box, and 10 inner boxes gather into 1 carton.
Purchase Information
Price Term: FOB Taiwan or FOB Ningbo
Payment Term: T/T, credit card, or pay pal
Lead Time: 4 weeks after order confirmation
