The new Cat6 unshielded easy RJ45 plug is a very good solution for field installation! How to terminate an Easy RJ45 connector? Compared to traditional RJ45 telecommunication connector, easy pass through RJ45 connector is very easy to do the assembly. Users are allowed to check the wires arrangement before crimping, it's the best way to prevent disconnection. There are 8 color coded wires, you can terminate it based on the TIA568A or 568B wire diagram. Use the easy plug crimping tool, you can cut the wires and crimp in one action. Crxconec rj45 plug latch can be bended for over 20 times, enhance the RJ45 plug lifecycle. Crxconec modular plug meets FCC STANDARD and IEC60603-7 test requirements.
Features
- Pass Through Design: Can assemble easily and performance better than normal C6 connector
- Wire Dimension: 1.1mm can fit insulation 0.98 ~ 1.05mm
- Terminal with Patent Design: Fit both Stranded and Solid wire
- Gold Plating: 50μ" with test report by X-RAY machine
- Crystal RJ45 connector compliance with FCC Standard.

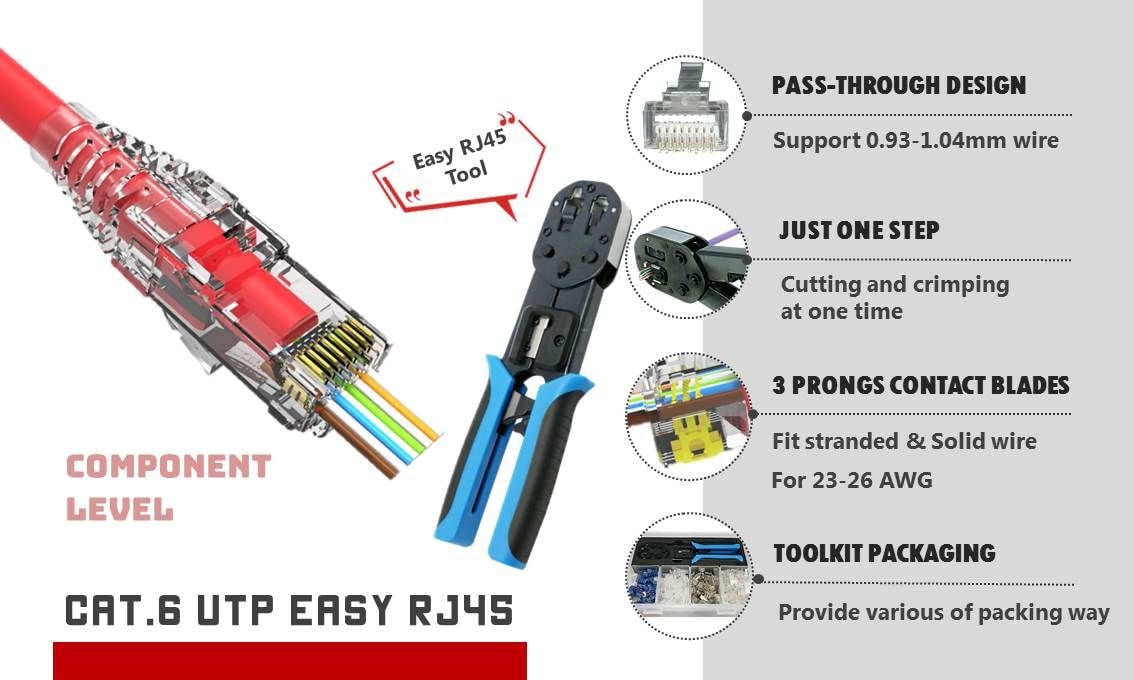

The perforated design. The clear assembly avoids wire lines errors, the pass-through design makes your plug perfect. The latch can be pulled over 180ׄ° for over 20 times, it shows durability.

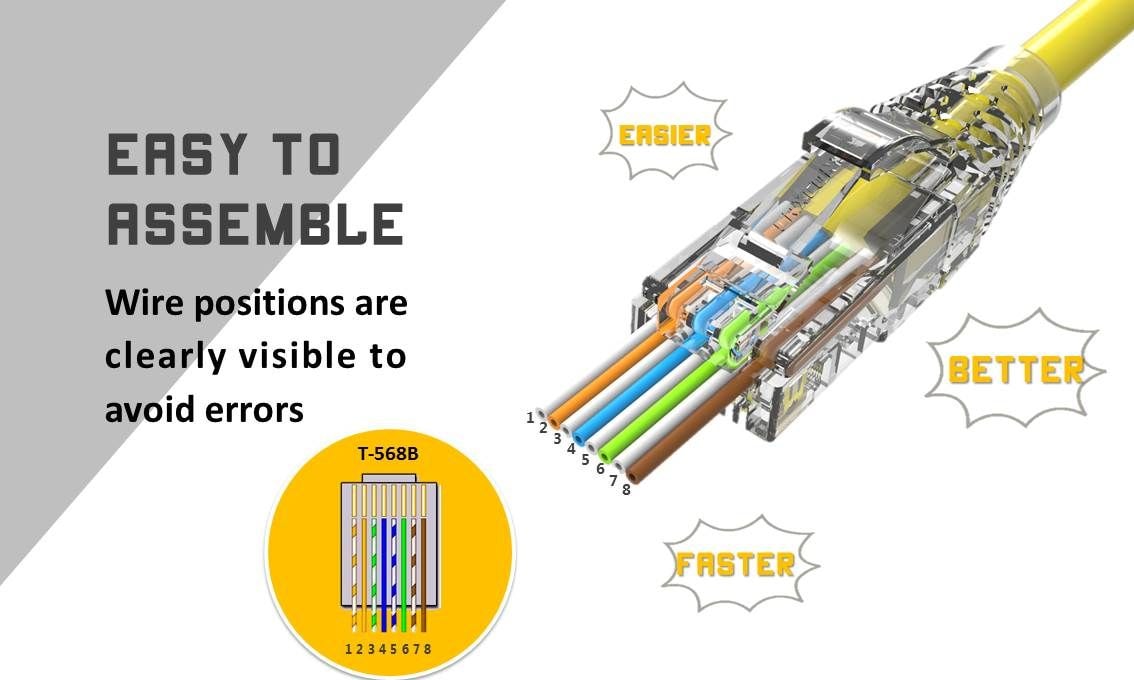

Our pass through design can be made to shielded or unshielded, the contact gold plated we product is 50u”, it can let your plug can be use for a more long time still could pass the fluke test.
Applications
Crxconec CAT.6 UTP RJ45 8p8c connectors could compliance with different outlet such as keystone Jack and patch panel, faceplate and surface mount box in the Data center or indoor working area.
RJ45 Connector can be use in many in-door and out-door places, such as living house, data center, office, hotel. Usually, it depends on the inside-wall's category, CRXCONEC can provide the most professional services and solutions for you.

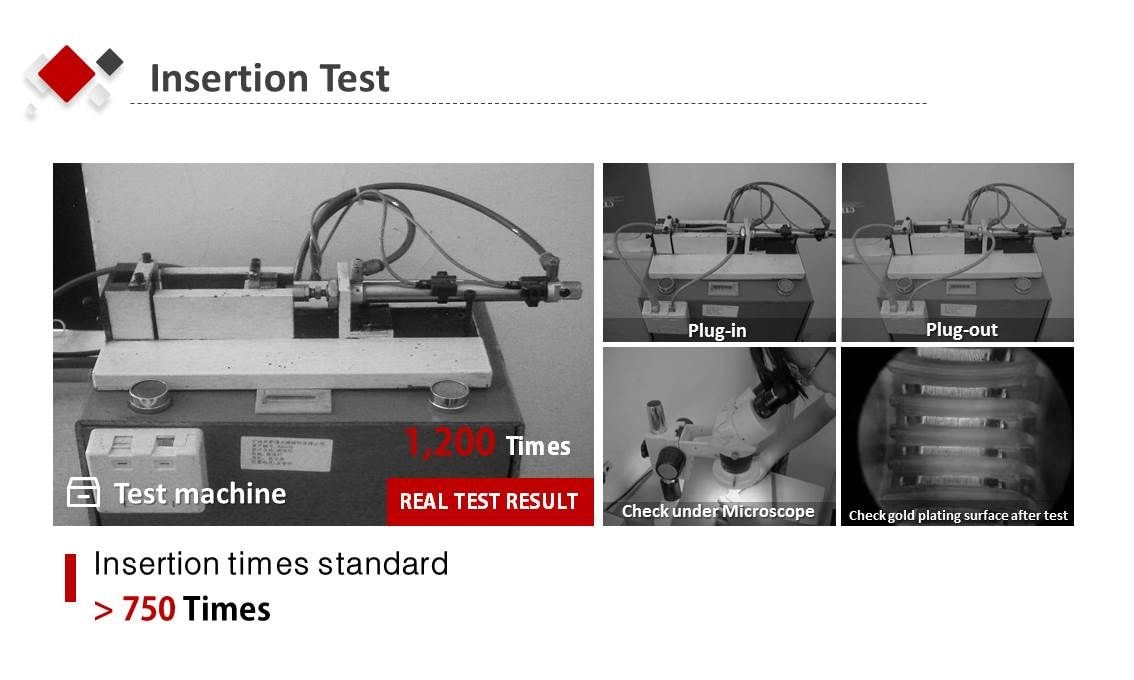

CC-01-00025-Easy RJ45 Plug insertion test.JPG
RJ45 Toolkit Packaging
CRXCONEC provide various of packing way, you can choose up to eight kind of plugs or boots in your toolkit, it can packed as a set when you need to demo or when you are selling, it let customer more easier to get all you need in this toolkit.

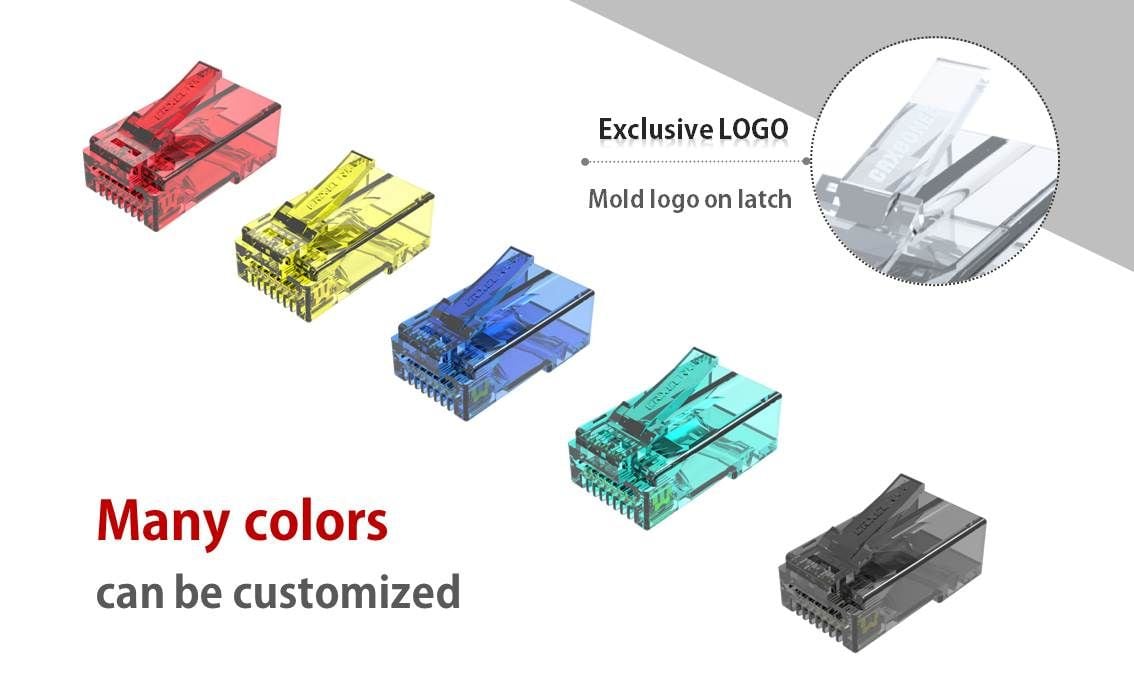

RJ45 Plug Customization
To become professional and unique for your brand, we provide OEM your own plug services, you can molded your own logo on it, change your plug color whatever you want, the gold plating 3u" to 50u" are also optional, and also you can choose the thikness of the chips with 0.3mm or 0.35mm.
Characteristics
| Contact Height After Crimping | 6.02mm ± 0.13mm |
|---|
| Durability Test | 750 times |
|---|
| Dielectric Voltage Withstand Test | Test 60S 1000V AC/DC TEST PASS |
|---|
| Tensile Test | ≥ 20pround (9.1kg) |
|---|
| Latch Bending Test | over 20 times |
|---|
| Operating Temperature Range | -40 ~ 70C |
|---|
| Storage Temperature Range | -40 ~ 70C |
|---|
Material
Crxconec C6 Unshielded modular plug's material are used the Japan's Polycarbonate 94V2 or 94V0, and also we used the copper alloy for terminal of RJ45 8p8c plug with Gold plating flash or 3μ" ~ 50μ" are available.

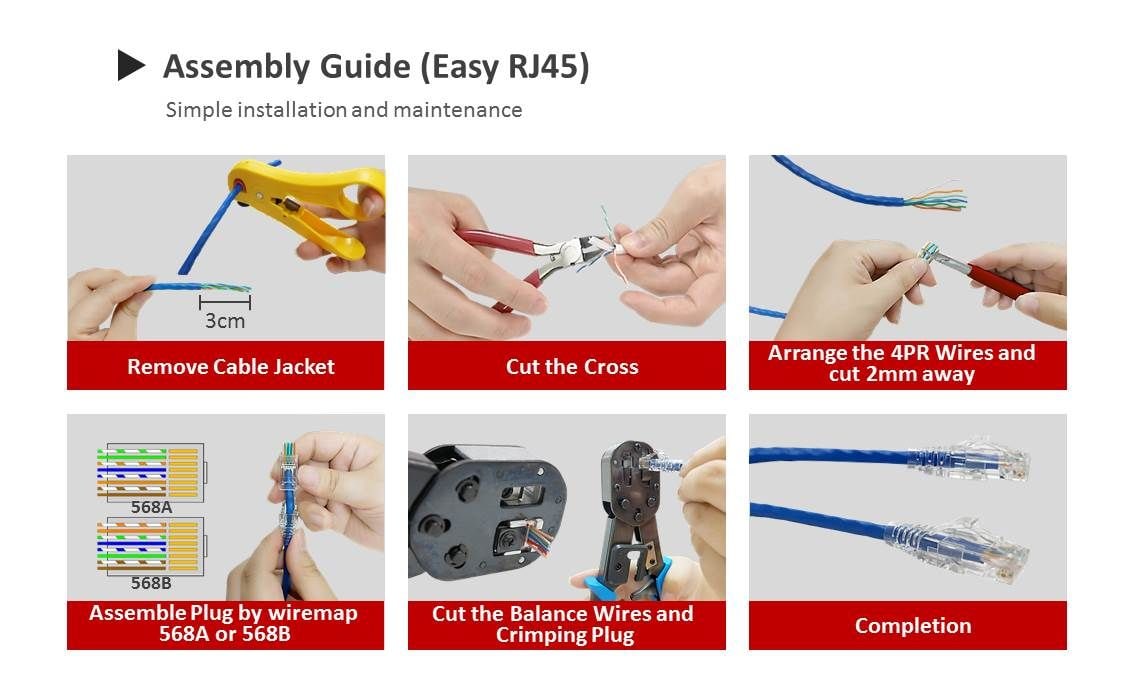

Assembly Guide
East RJ45 connector is the one of the easiest during assembly, because of the special design, you can just pass through the RJ45 modular plug by cable, after that, use our crimping tool crimp the patch cord, it can also cut the extra cable that we don't need together.
Packaging
Our plug can be packed by two ways, if your order has a huge amount, then, the inner box packing into carton is suitable for you. but if you are looking more attractive and more textured, the plugs pack with our candy can. It is more good looking and we can also put your logo on your candy can, and there are three types of candy can color for your selection.
Purchase Information
- Price Term: FOB Taiwan or FOB Ningbo
- Payment Term: T/T, credit card, or pay pal
- Lead Time: 3-4 weeks after order confirmation
